Nyrstar Belgium nv
09 June 2016
A cooling pond
At Balen/Lommel, Nyrstar used a pond with an area of approximately 16 hectares to provide cooling to the production process. The requested cooling capacity, however, exceeded the potential of the pond. AGT was asked to re-dimension the cooling pond so that the cooling requirement can be fulfilled.
The Model

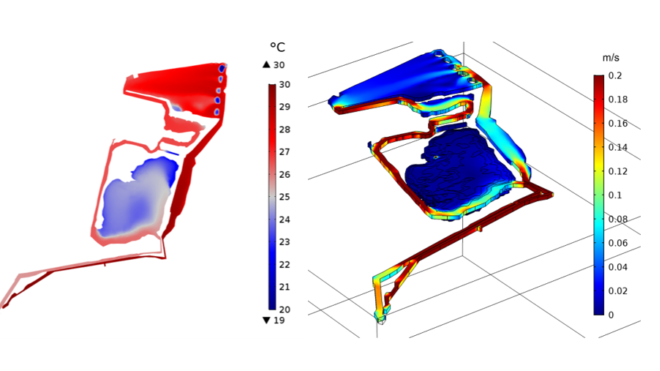

In first step, the flow and heat transport in the current cooling pond were calculated using finite element code of COMSOL. This showed that the heat exchange process is highly dependent on the outside temperature and that large part of the pond volume was not used in the original pond concept. A few improved pond concepts were developed and calculated. The energy exchange between atmosphere, soil and surface water was always taken into account.
Do you need an advice related to temperature fluwes or cooling capacity?
Use the experience and knowlegde of AGT!
